InsulationTo remain safe and overcome the restrictions of conventional polyvinyl chloride insulation of cables, the conductors are insulated with specially formulated PVC compounds. They have dielectric strength, high insulation resistance, high-temperature index, and high critical oxygen index.

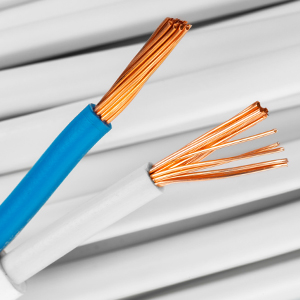

Manufactured from the best quality electrolytic grade bright annealed copper, our multi-core cables provide maximum conductivity to the electricity flow. It helps in saving energy and power costs.
PVC sheathed and PVC insulated multicore cable with electrolytic grade bright annealed copper is perfectly suitable up to 1100V grade, which particularly conforms to IS:694.
| Nominal Area Of Conductor (SQ.MM) | No. of strands/Nominal Dia no./mm | Nominal Insulation Thiskness (MM) | Core Dia (Approx) mm | Nominal Sheath Thickness in mm | Overall Diameter in mm (Approx) | Current Rating Amp | Max DC Conductor Resistance At 20c Ohm/km | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 Core | 3 Core | 4 Core | 2 Core | 3 Core | 4 Core | ||||||
| 0.50 | 16/0.2 | 0.60 | 2.20 | 0.9 | 0.9 | 0.9 | 6.2 | 6.5 | 7.0 | 4 | 39.00 |
| 0.75 | 24/0.2 | 0.60 | 2.45 | 0.9 | 0.9 | 0.9 | 6.7 | 7.2 | 7.8 | 7 | 26.00 |
| 1.00 | 32/0.2 | 0.60 | 2.45 | 0.9 | 0.9 | 0.9 | 7.0 | 7.4 | 8.1 | 12 | 19.5 |
| 1.50 | 30/0.25 | 0.60 | 2.75 | 0.9 | 0.9 | 0.9 | 7.6 | 8.0 | 9.2 | 15 | 13.3 |
| 2.50 | 50/0.25 | 0.70 | 3.50 | 1.0 | 1.0 | 1.0 | 9.1 | 9.6 | 10.7 | 20 | 7.98 |
| 4.00 | 56/0.3 | 0.80 | 4.10 | 1.0 | 1.1 | 1.1 | 10.5 | 11.4 | 12.4 | 27 | 4.95 |
| 6.00 | 84/0.3 | 0.80 | 4.80 | 1.1 | 1.1 | 1.2 | 12.3 | 13.3 | 14.7 | 35 | 3.30 |
| 10.00 | 80/0.4 | 1.00 | 6.30 | 1.2 | 1.2 | 1.3 | 15.7 | 16.9 | 18.6 | 40 | 1.91 |
| 16.00 | 126/0.4 | 1.00 | 7.30 | 1.3 | 1.3 | 1.4 | 18.0 | 19.10 | 21.2 | 62 | 1.21 |
| 25.00 | 196/0.4 | 1.20 | 9.30 | 1.4 | 1.5 | 1.6 | 23.0 | 23.5 | 26.1 | 80 | 0.78 |
| 35.00 | 276/0.4 | 1.20 | 10.50 | 1.5 | 1.6 | 1.7 | 25.5 | 26.3 | 29.2 | 102 | 0.554 |
| 50.00 | 396/0.4 | 1.40 | 12.40 | 1.6 | 1.7 | 1.8 | 29.0 | 31.8 | 34.0 | 138 | 0.386 |
| 70.00 | 360/0.5 | 1.40 | 14.70 | 1.6 | 1.7 | 1.8 | 29.0 | 31.8 | 34.0 | 214 | 0.272 |
| 95.00 | 475/0.5 | 1.60 | 16.20 | 2.4 | 2.4 | 2.4 | 37.2 | 39.8 | 44.0 | 260 | 0.206 |
| 120.00 | 608/0.5 | 1.60 | 18.20 | 2.5 | 2.5 | 2.5 | 41.5 | 44.3 | 49.4 | 305 | 0.161 |
| 150.00 | 750/0.5 | 1.80 | 20.20 | 2.6 | 2.6 | 2.6 | 45.6 | 48.8 | 54.2 | 355 | 0.129 |
| 185.00 | 925/0.5 | 2.00 | 22.40 | 2.8 | 2.8 | 2.8 | 50.4 | 54.0 | 59.8 | 415 | 0.106 |
| 240.00 | 1221/0.5 | 2.20 | 25.50 | 3.0 | 3.0 | NA | 57.0 | 61.1 | NA | 425 | 0.0801 |
| Colours of Core & Sheath | ||
|---|---|---|
| Type | Colours of Core | Colours of Sheath |
| 2 Core Sheathed | Red & Black | Black, White & Grey |
| 3 Core Sheathed | Red, Black & Green for earth | Black, White & Grey |
| 4 Core Sheathed | Red, Yellow, Blue & Green for earth | Black, White & Grey |
*FR/FR-LSH multicore cables can also be supplied at extra cost on request.
*Every core of the cable comes in a different color for identification purposes.
| Nominal Area Of Conductor (SQ.MM) | No. of strands/Nominal Dia no./mm | Nominal Insulation Thiskness (MM) | Core Dia (Approx) mm | Nominal Sheath Thickness in mm | Overall Diameter in mm (Approx) | Current Rating Amp | Max DC Conductor Resistance At 20c Ohm/km | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 Core | 7 Core | 8 Core | 6 Core | 7 Core | 8 Core | ||||||
| 0.50 | 16/0.2 | 0.60 | 2.20 | 0.9 | 0.9 | 0.9 | 6.2 | 6.5 | 7.0 | 4 | 39.00 |
| 0.50 | 16/0.2 | 0.60 | 2.20 | 0.9 | 0.9 | 1.00 | 8.50 | 8.50 | 9.30 | 4 | 39.00 |
| 0.75 | 24/0.2 | 0.60 | 2.45 | 1.00 | 1.00 | 1.00 | 9.50 | 9.50 | 10.40 | 7 | 26.00 |
| 1.00 | 32/0.2 | 0.60 | 2.45 | 1.00 | 1.00 | 1.00 | 9.80 | 9.80 | 10.70 | 12 | 19.5 |
| 1.50 | 30/0.25 | 0.60 | 2.75 | 1.00 | 1.00 | 1.10 | 10.70 | 10.70 | 11.90 | 15 | 13.3 |
| 2.50 | 50/0.25 | 0.70 | 3.50 | 1.00 | 1.10 | 1.20 | 12.70 | 12.70 | 14.10 | 20 | 7.98 |
| 4.00 | 56/0.3 | 0.8 | 4.10 | 1.20 | 1.20 | 1.30 | 15.30 | 15.30 | 16.90 | 27 | 4.95 |
| Nominal Area Of Conductor (SQ.MM) | No. of strands/Nominal Dia no./mm | Nominal Insulation Thiskness (MM) | Core Dia (Approx) mm | Nominal Sheath Thickness in mm | Overall Diameter in mm (Approx) | Current Rating Amp | Max DC Conductor Resistance At 20c Ohm/km | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 Core | 12 Core | 14 Core | 10 Core | 12 Core | 14 Core | ||||||
| 0.50 | 16/0.2 | 0.60 | 2.20 | 1.00 | 1.00 | 1.10 | 10.80 | 11.20 | 12.00 | 4 | 39.00 |
| 0.75 | 24/0.2 | 0.60 | 2.45 | 1.10 | 1.10 | 1.10 | 12.20 | 12.60 | 13.30 | 7 | 26.00 |
| 1.00 | 32/0.2 | 0.60 | 2.45 | 1.10 | 1.10 | 1.10 | 12.60 | 13.00 | 13.70 | 12 | 19.5 |
| 1.50 | 30/0.25 | 0.60 | 2.75 | 1.10 | 1.10 | 1.20 | 13.80 | 14.80 | 15.20 | 15 | 13.3 |
| 2.50 | 50/0.25 | 0.70 | 3.50 | 1.30 | 1.30 | 1.30 | 16.60 | 17.20 | 18.10 | 20 | 7.98 |
| 4.00 | 56/0.3 | 0.8 | 4.10 | 1.40 | 1.40 | 1.40 | 20.00 | 20.70 | 21.80 | 27 | 4.95 |
| Nominal Area Of Conductor (SQ.MM) | No. of strands/Nominal Dia no./mm | Nominal Insulation Thiskness (MM) | Core Dia (Approx) mm | Nominal Sheath Thickness in mm | Overall Diameter in mm (Approx) | Current Rating Amp | Max DC Conductor Resistance At 20c Ohm/km | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 Core | 19 Core | 24 Core | 16 Core | 19 Core | 24 Core | ||||||
| 0.50 | 16/0.2 | 0.60 | 2.20 | 1.10 | 1.10 | 1.20 | 12.60 | 13.20 | 15.60 | 4 | 39.00 |
| 0.75 | 24/0.2 | 0.60 | 2.45 | 1.20 | 1.20 | 1.30 | 14.20 | 14.90 | 17.60 | 7 | 26.00 |
| 1.00 | 32/0.2 | 0.60 | 2.45 | 1.20 | 1.30 | 1.30 | 14.60 | 15.60 | 18.20 | 12 | 19.5 |
| 1.50 | 30/0.25 | 0.60 | 2.75 | 1.20 | 1.30 | 1.40 | 16.00 | 17.10 | 20.20 | 15 | 13.3 |
| 2.50 | 50/0.25 | 0.70 | 3.50 | 1.40 | 1.40 | 1.40 | 19.30 | 20.30 | 23.80 | 20 | 7.98 |
| 4.00 | 56/0.3 | 0.8 | 4.10 | 1.50 | 1.50 | 1.50 | 23.20 | 24.50 | 28.50 | 27 | 4.95 |
